Description
Features
Compact size
The JBL Club A754 amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited.
Variable crossover
Unlike many amplifiers available at similar prices, the JBL Club A754 features variable electronic crossovers for precise system tuning and performance.
Input Level Control
When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 2.0 Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 2Vrms and 20Vrms.
Preamp Outputs
Using multiple amplifiers, the Club A754 has full range preamp outputs allowing you to feed an additional amplifier without using splitters.
High and low level input
Speaker-level and low-level inputs allow the Club A754 to integrate with both aftermarket and factory car stereo systems.
Low noise and distortion
The Club A754 has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced engine noise.
Full on-board protection
On-board circuitry protects the Club A754 from shorts, high-temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists.
Description
The Club A754 4-channel amplifier delivers a powerful 75-Watts RMS to each of the front and rear speakers in your car. You can also bridge the amp to 2-channel mode to drive a couple subs with 200 watts RMS or 3-channel mode to drive both a pair of full range speakers and a subwoofer. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your car’s factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics.
Specs
| RMS Power Output (4Ω) | 75W × 4 |
| RMS Power Output (2Ω) | 100W × 4 |
| Bridged RMS Power Output | 200W × 2 at 4Ω (4Ω Stable in Bridged Mode) |
| Crossover Filters | Variable HPF / LPF (32Hz – 320Hz, 12dB/Octave) |
| Inputs | Preamp & Speaker-Level Inputs |
| Preamp Outputs | Yes |
| Fuse Rating | 30A × 2 |
| Recommended Power & Ground Leads | 8-Gauge |
| Wiring & Hardware | Not Included |
| Dimensions (W × H × D) | 320 × 51.3 × 180 mm (12-5/8″ × 2-1/16″ × 7-1/8″) |
What's in The Box?

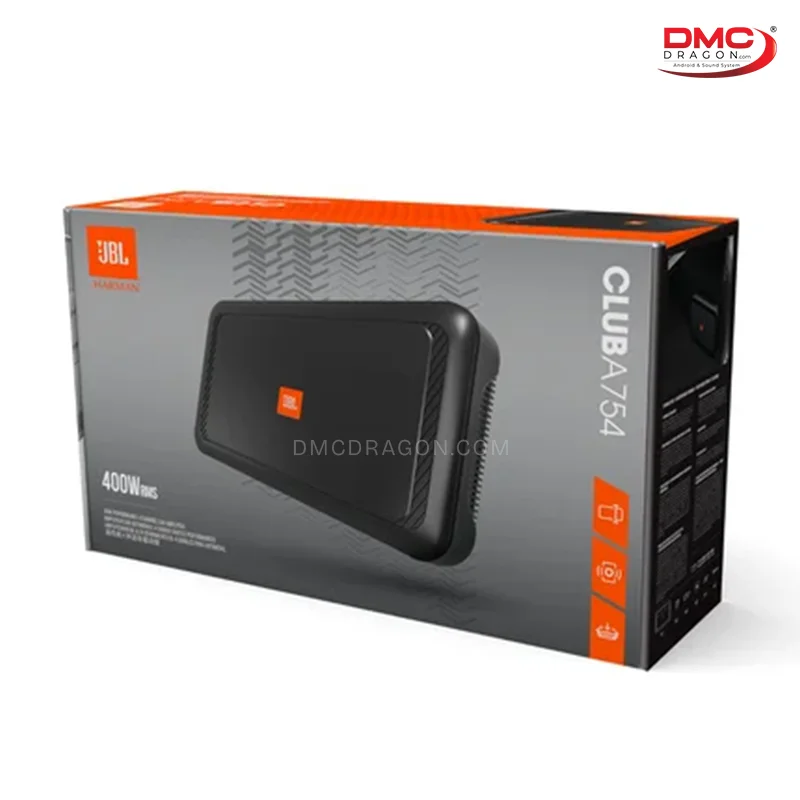

- 1 x Club A754 four channel amplifier
- 4 x Bare wire-to-RCA adapters
- 4 x 30A ATO fuses (2 installed, 2 spare)
- 4 Mounting screws (M4 x 53mm)
- 2 x JBL stickers
- 1 x Owner’s manual
