Description

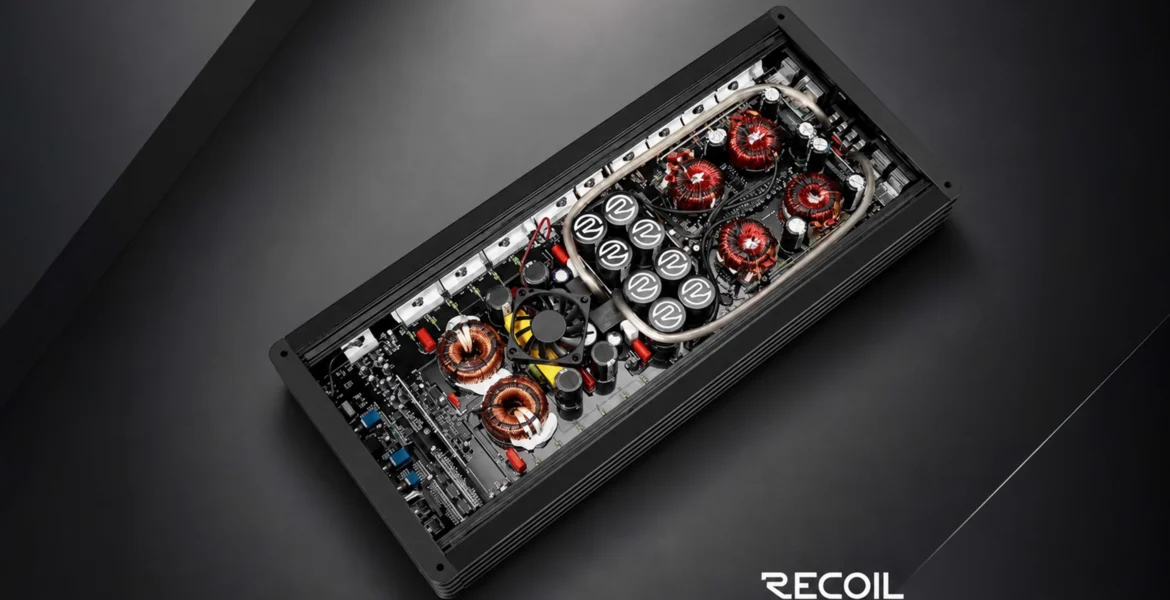

High-Power Internal Design
The Recoil SPL3800.1 features a robust internal design with multiple high-performance components, large toroidal coils, heavy-duty capacitors, and an integrated cooling fan. This powerful hardware layout is engineered to support high-current performance and reliable power delivery for demanding car audio systems.

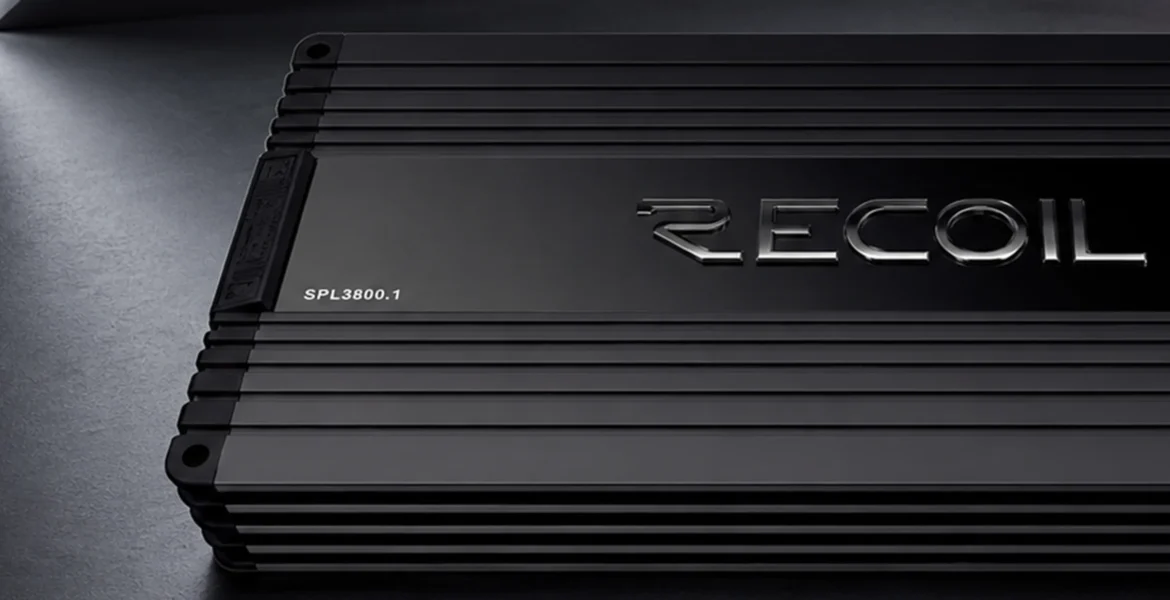

Premium Matte Black Finish
Features a matte black premium aluminum finish with deep horizontal cooling fins and a sleek brushed-metal appearance, giving the amplifier a modern, durable, and high-performance look.

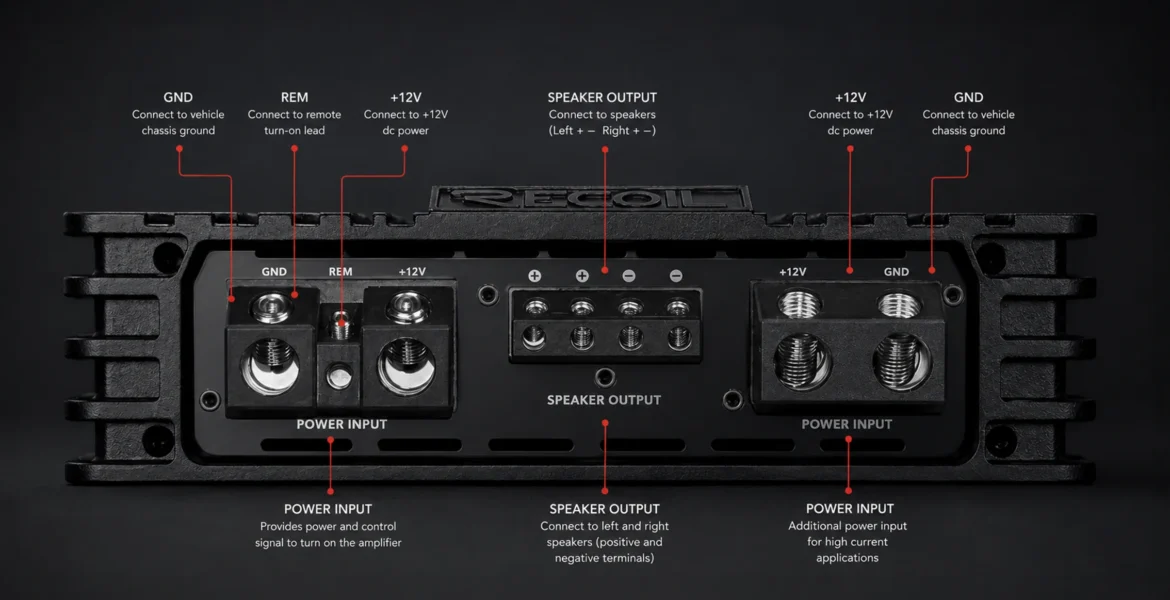

Dual Power Input
Designed with dual power input terminals for reliable power delivery and high-current applications. The amplifier also features dedicated GND, REM, +12V, and speaker output terminals for secure and organized connections.

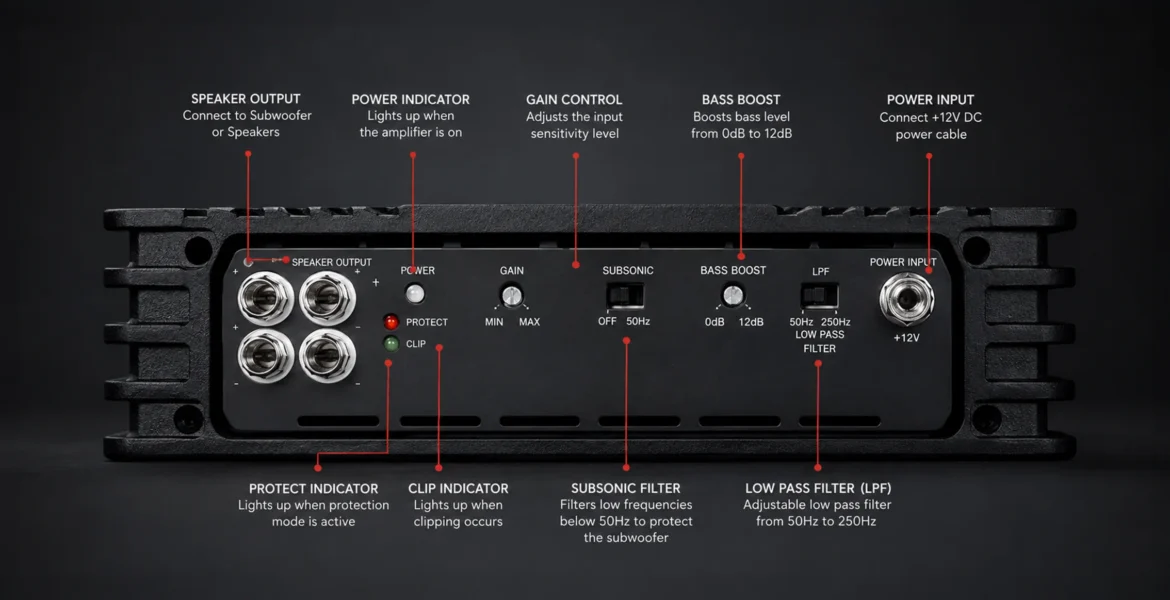

Advanced Bass Control
Fine-tune your bass performance with adjustable Gain, Bass Boost, Subsonic Filter, and Low Pass Filter controls. The amplifier offers 0–12dB Bass Boost, a 50Hz Subsonic Filter, and an adjustable 50–250Hz LPF, along with dedicated Power, Protect, and Clip indicators for easy system monitoring.

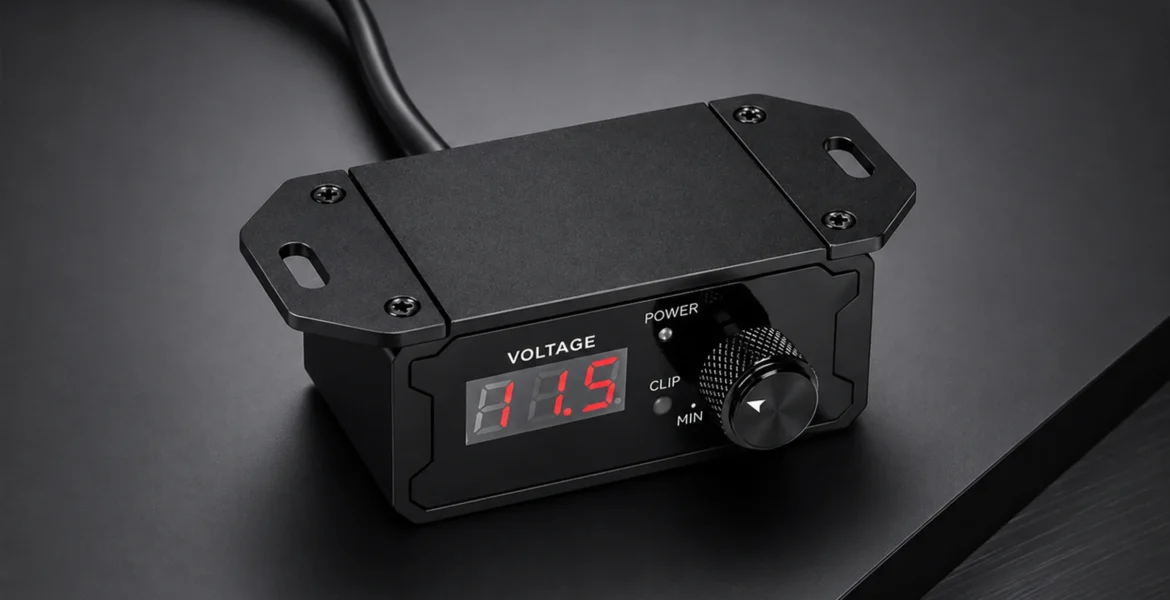

Remote Bass Control
The included wired bass remote controller provides convenient control over your amplifier’s bass level. It features a digital voltage display, power and clip indicators, and a rotary control knob for easy adjustment from the driver’s seat.
SPECIFICATIONS
| Protection Circuit | 4-Way Protection: Thermal, Voltage, Speaker, DC |
| Power @ 1 Ohm (14.4V) | 3800W × 1 |
| Power @ 2 Ohm (14.4V) | 2600W × 1 |
| Power @ 4 Ohm (14.4V) | 1400W × 1 |
| Power (Bridged) @ 4 Ohm (14.4V) | N/A |
| Power (Bridged) @ 2 Ohm (14.4V) | N/A |
| Operating Voltage | 9V – 16V |
| Idling Current (Power On) | 2600mA |
| Frequency Response | 12Hz – 285Hz |
| Signal-to-Noise Ratio (SNR) | 95dB |
| THD+N (@1W) | < 0.05% |
| Input Sensitivity (Low Level) | 0.2V – 6V |
| Input Sensitivity (High Level) | N/A |
| Bass Boost | 0 – 12dB |
| Subsonic Filter | 12Hz – 48Hz |
| Crossover LPF | 35Hz – 258Hz |
| Crossover HPF | N/A |
| Bass Remote | Yes |
| Clip Indication | 2.5% |
| Fuse Rating | 250A |
| Dimensions (Inches) | 21.4″ × 9.25″ × 2.64″ |
| Dimensions (Metric) | 544mm × 235mm × 67mm |
